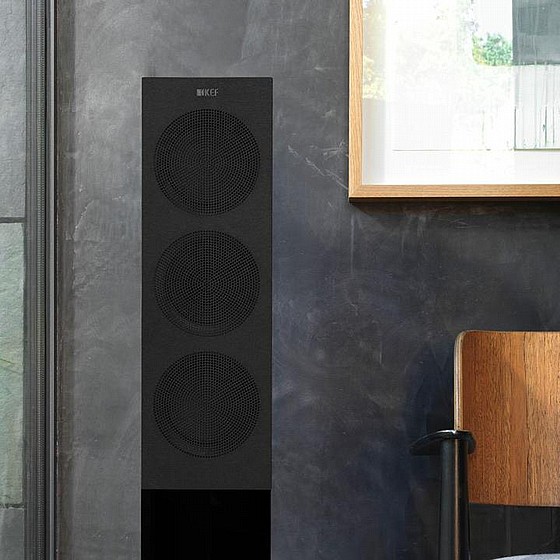

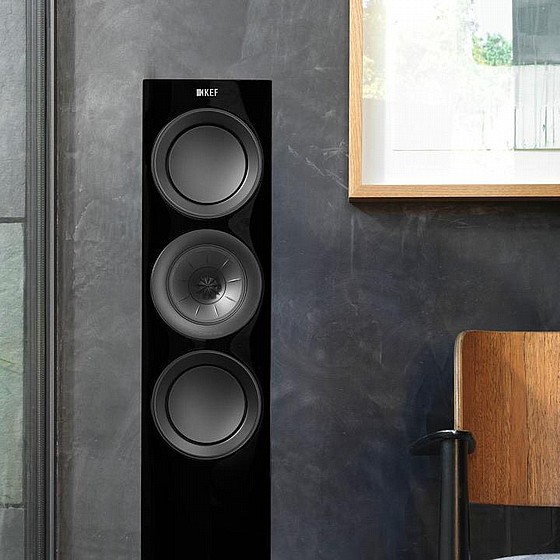

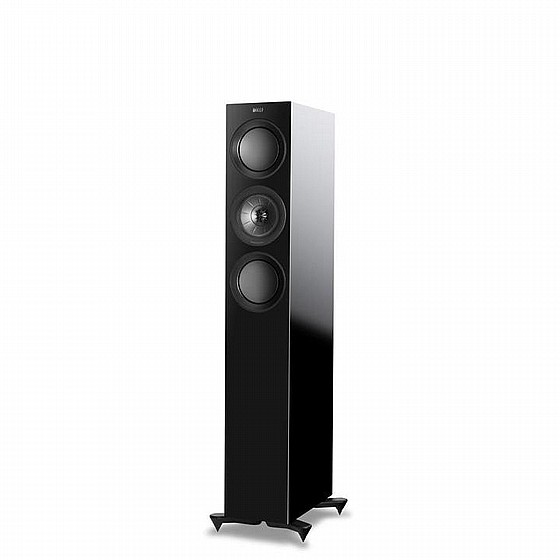

רמקולים רצפתיים KEF R5

DESIGN

Three-way bass reflex

DRIVE UNITS

Uni-Q Driver Array: HF: 25mm (1in.) vented aluminium dome MF: 125mm (5in.) aluminium cone Bass Driver: LF: 2 x 130mm (5.25in.) hybrid aluminium



WEIGHT

27.3 kg (60.2 lbs.)

DIMENSION (H X W X D)

1025 x 175 x 343.5 mm (40.4 x 6.9 x 13.5 in.) with terminal*

DIMENSION (H X W X D)

1071.4 x 271.6 x 343.5 mm (42.2 x 10.7 x 13.5 in.) with Plinth*

SENSITIVITY

(2.83V/1m) 87dB

FREQUENCY RANGE

38Hz-50kHz (-6dB)

TYPICAL IN-ROOM BASS RESPONSE

29Hz (-6dB)

FREQUENCY RESPONSE

52Hz-28kHz (±3dB)

HARMONIC DISTORTION

<0.3% 120Hz-20kHz (90dB, 1m)

MAXIMUM OUTPUT

110dB

AMPLIFIER POWER

15-200W (recommended)

NOMINAL IMPEDANCE

8Ohms (min.3.2Ohms)

DRIVE UNITS

Uni-Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 2x 130mm (5.25in.) hybrid aluminium

CROSSOVER FREQUENCIES

400Hz, 2.9kHz

FINISHES

Black Gloss / White Gloss / Walnut
