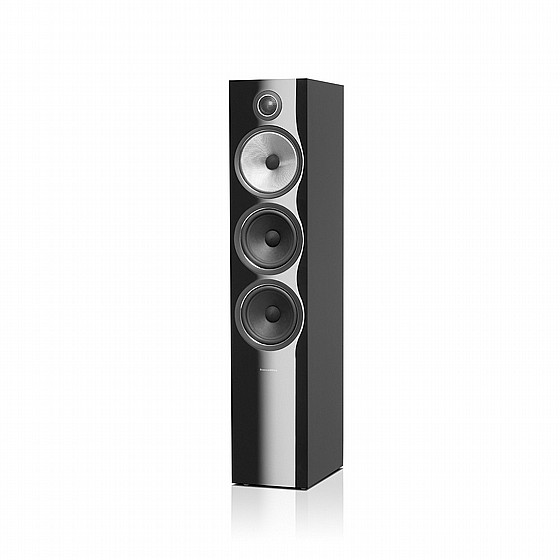

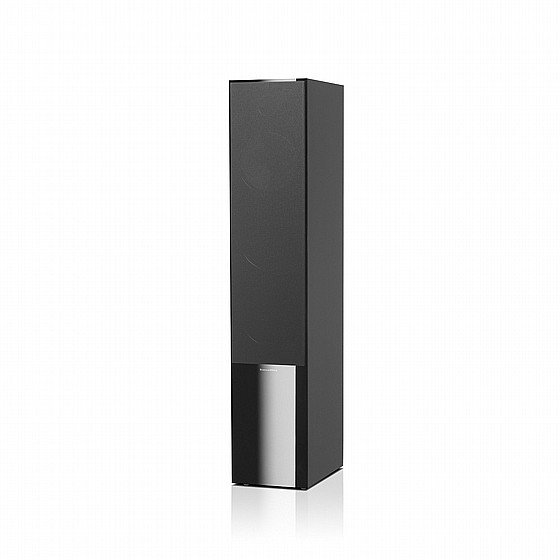

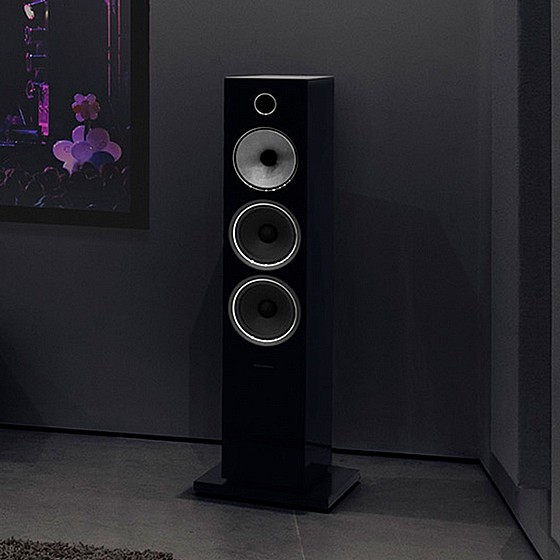

רמקולים רצפתיים B&W 703 S2

specifications

Model
703 S2

Description
3-way vented-box system

Features
Decoupled Carbon Dome tweeter
Continuum™ cone FST midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™

Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Aerofoil profile bass

Frequency range
-6dB at 30Hz and 33kHz

Frequency response
46Hz - 28kHz ±3dB

Sensitivity
89dB spl (2.83Vrms, 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz

Nominal impedance
8Ω (minimum 3.1Ω)

Recommended amplifier power
30W - 200W into 8Ω on unclipped programme

Dimensions
Height: 990mm (39 in) cabinet only 1025mm (40.4 in) including plinth
Width: 200mm (7.9 in) cabinet only 320mm (12.6 in) including plinth
Depth: 300mm (11.8 in) cabinet only 321mm (12.6 in) inc. grille and terminals 370mm (14.6 in) including plinth

Net weight
25.0kg (55.2 lb)

Cabinet finishes
Gloss Black
Satin White
Rosenut

Grille finishes
Black
Grey (Satin White only)
