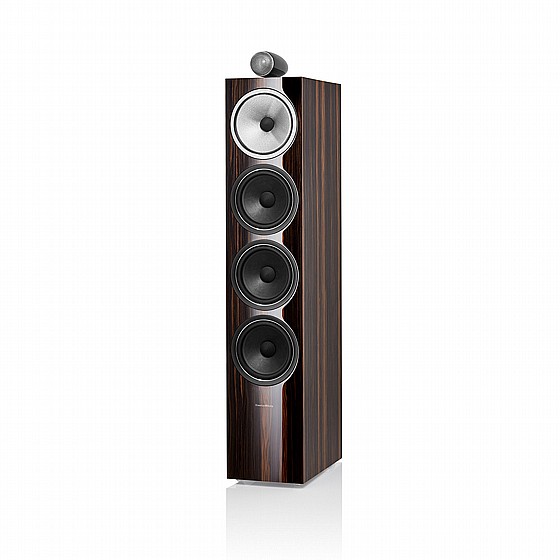

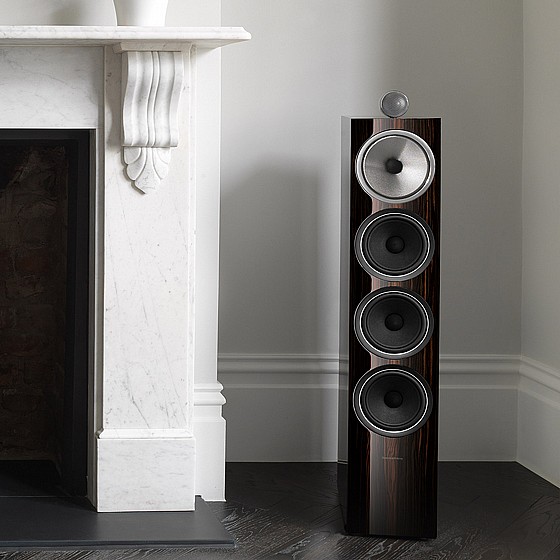

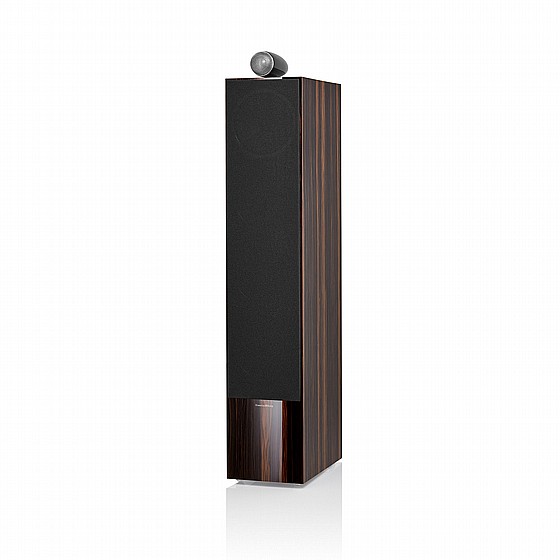

רמקול רצפתי B&W 702 S2 signature

Technical specifications

Model
702 Signature

Description
3-way vented-box system

Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™

Drive units
1x ø25mm (1 in) Carbon Dome
high-frequency
1x ø150mm (6 in) Continuum cone
FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass

Frequency range
6dB at 28Hz and 33kHz

Frequency response
46Hz - 28kHz ±3dB

Sensitivity
90dB spl (2.83Vrms, 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz

Normal impedance
8Ω (minimum 3.1Ω)

Reccomended amplifier power
30W - 300W into 8Ω on
unclipped programme

Dimensions
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter
and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth

Net weight
29.5kg (65 lb)

Cabinet finishes
Datuk Gloss

Grille finishes
Black
