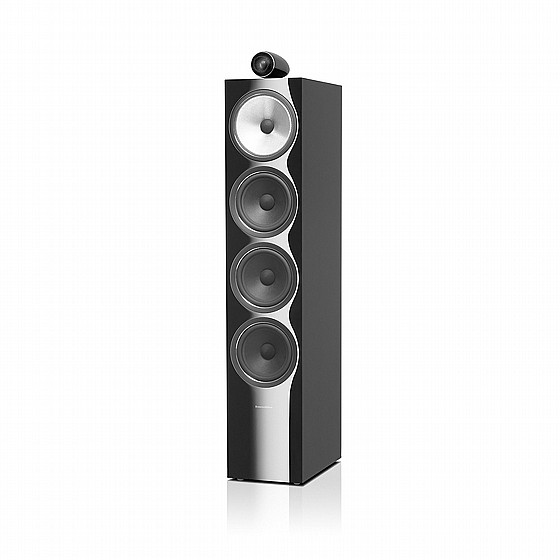

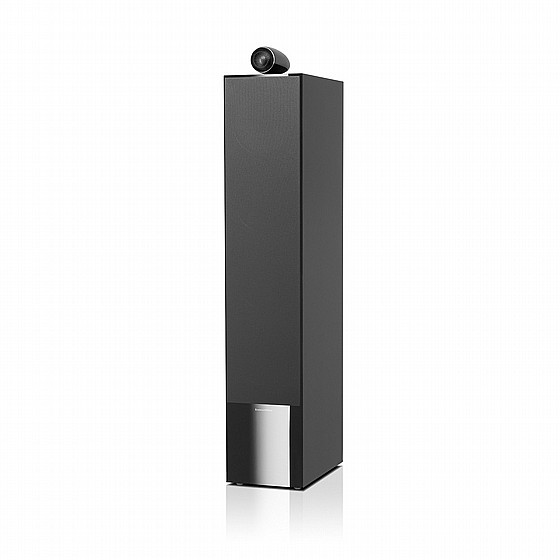

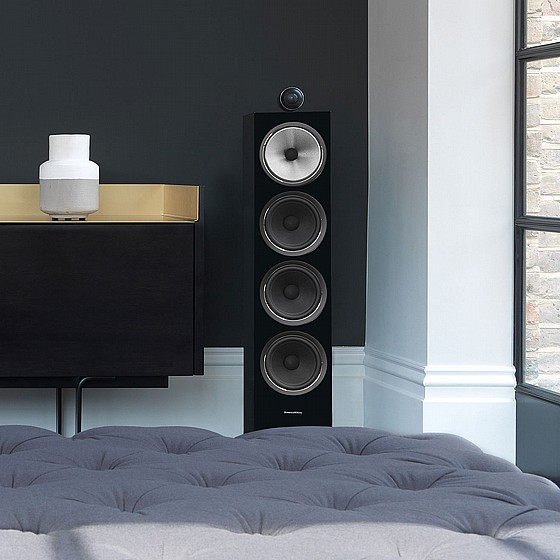

רמקול רצפתי B&W 702 S2

Technical specifications

Model
702 S2

Description
3-way vented-box system

Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™

Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass

Frequency range
-6dB at 28Hz and 33kHz

Frequency response
46Hz - 28kHz ±3dB

Sensitivity
90dB spl (2.83Vrms, 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz

Nominal impedance
8Ω (minimum 3.1Ω)

Recommended amplifier power
30W - 300W into 8Ω on unclipped programme

Dimensions
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth

Net weight
29.5kg (65 lb)

Cabinet finishes
Gloss Black
Satin White
Rosenut

Grille finishes
Black
Grey (Satin White only)
