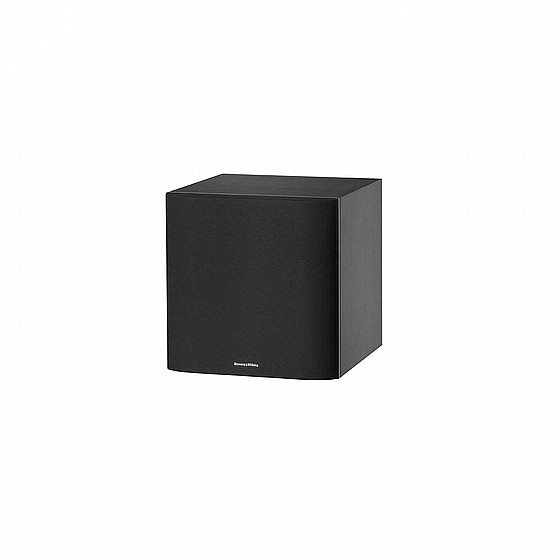

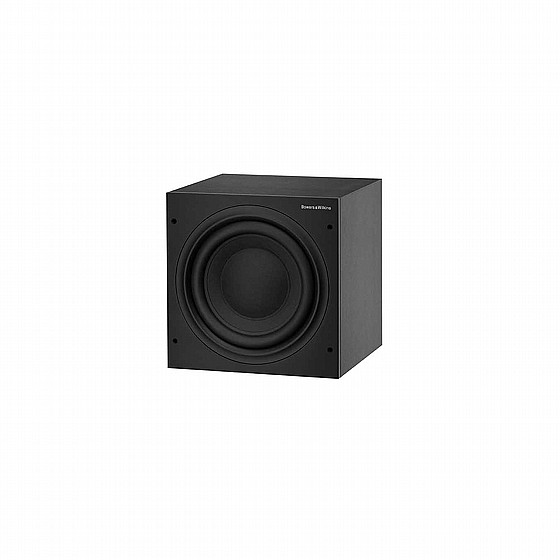

סאב-וופר ASW-610

Technical specfications

Features
Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch

Description
Active closed-box subwoofer system

Drive unit
ø250mm (10 in) paper / Aramid fibre cone long-throw

Frequency range
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)

Frequency response
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)

Bass extension
-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)

Power output
200W

Rated power consumption
40W / 0.5W standby

Input impedance
33kΩ

Signal / noise
>90dB

Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency

Dimensions
Height: 310mm (12.2 in) not including feet or spikes
322mm (12.7in) including feet
338mm (13.3in) including spikes
Width: 310mm (12.2 in)
Depth: 347mm (13.66in) not including grilles
375mm (14.8 in) including grilles and controls

Net weight
12.5kg (27.6 lb)

Cabinet finishes
Black
White

Grille finishes
Black
Grey
